The Chastain Plan — Modern European Stone Manor home design

House Plans

The Chastain

Permit-ready home plan design for The Chastain: 6,500 SF modern European stone manor house plan with central pool, 4-car garage, guest suite, and complete construction drawings.

Home/Plans/The Chastain

Design Gallery

Exterior & Interior Renderings

Square Footage

6,500 SF

Footprint

62' x 78'

Bed / Bath

6 Beds / 7.5 Baths

Garage

4-Car Side Entry

Foundation

Basement / Slab

Design Narrative

The Chastain is a grand architectural statement designed as a modern European Stone Manor. The exterior features a beautiful natural stone facade, soaring steep-pitched gables, standing-seam metal accents, and massive steel-framed windows. The home is organized around a central courtyard and swimming pool, offering an unparalleled resort-level lifestyle.

The main floor features a spacious open-concept kitchen, dining room, and keeping room with views of the courtyard. The center of the home holds a double-height family room and a grand entry foyer. The left wing contains a private home office, guest powder room, and a massive primary owner's suite featuring a large master bath, dual closets, and an exercise room and porch. A 4-car side-entry garage connects to a mudroom and bar area on the right.

The upper level is accessible via the grand staircase or optional elevator, leading to four en-suite bedrooms (each with cathedral ceilings), a second-floor laundry room, and a massive, private Guest Suite over the garage bays.

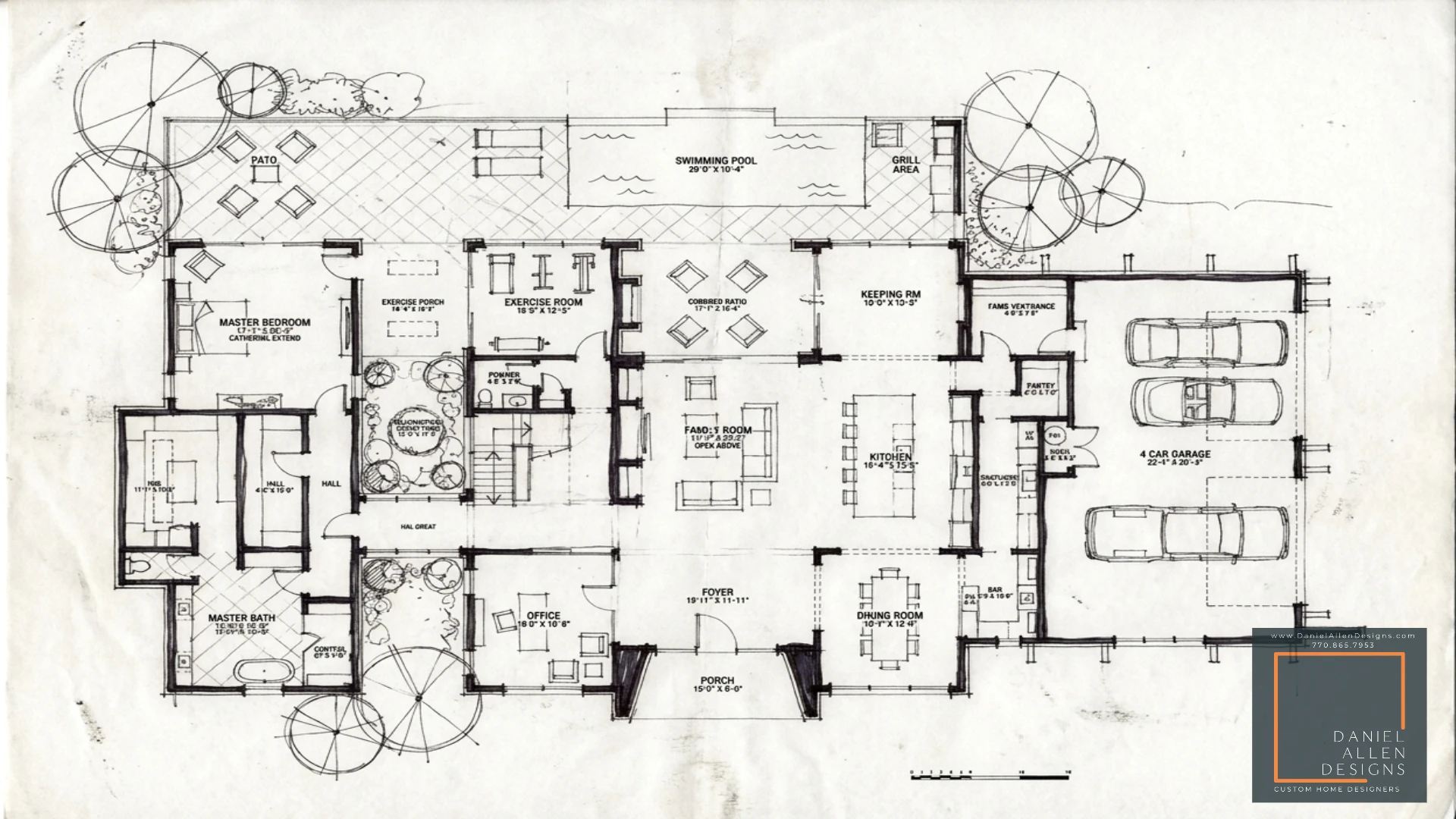

The Main Level Layout for The Chastain

The Main Level Layout

The main floor plan maximizes visual drama while maintaining open sightlines and double-height volumes. The layout coordinates living areas around the rear pool deck and incorporates a grand foyer, private study, master suite, and exercise wing.

Key main floor features include:

  • Double-height family room with fireplace and floor-to-ceiling window wall.
  • Gourmet kitchen with keeping room, scullery, pantry, and built-in bar.
  • Master wing featuring a master bath, dual closets, and an exercise room and porch.
  • 4-car side-entry garage and formal dining room flanking the entry hall.

The Second Level Layout

The upper level of The Chastain is designed with open-to-below visual connections that enhance the home's sense of light and space. A dramatic bridge walkway overlooks the double-height family room and links four secondary en-suite bedrooms and a massive, private Guest Suite over the garage. A second-floor laundry room completes this level.

Key second floor features include:

  • Four secondary en-suite bedrooms and a massive Guest Suite (22' x 25').
  • Bridge walkway overlooking the grand family room below.
  • Elevator access and upper hallway sitting area.
  • Convenient second-level laundry room adjacent to the bedrooms.

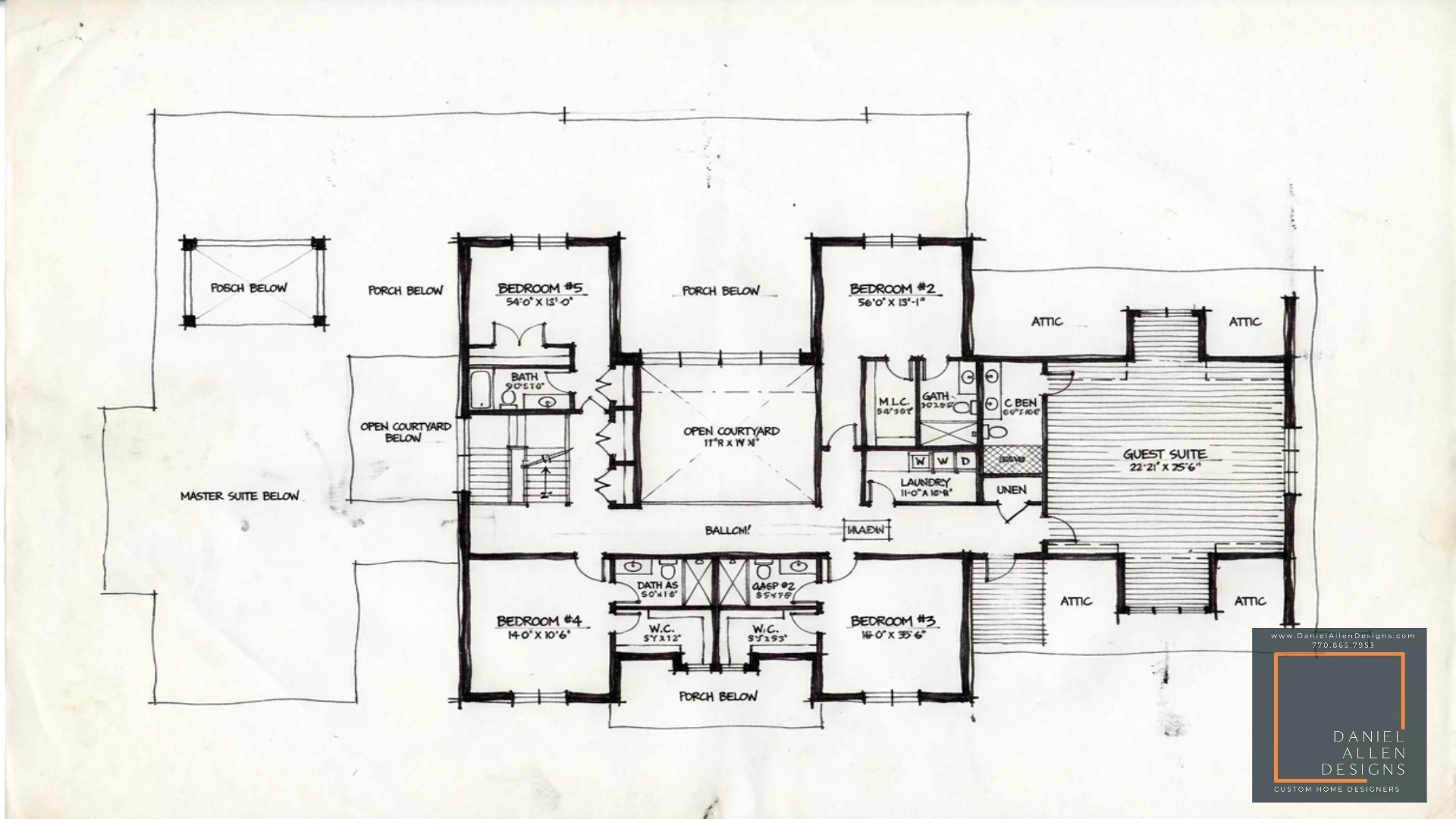

The Second Level Layout for The Chastain
The Pool Courtyard & Covered Porch for The Chastain

Pool Courtyard & Covered Porch

The rear pool courtyard serves as a magnificent outdoor sanctuary. The plan is also pre-engineered for a walk-out daylight basement option. Suggested layout options support a large multi-game room with wet bar, a private home gym, a sunken home theater, and an additional guest bedroom suite.

Key courtyard features include:

  • Open game room with direct walk-out patio access.
  • Private sixth bedroom suite ideal for guests or in-laws.
  • Home fitness gym and sunken home theater.
  • Pre-engineered walk-out basement foundation option for sloping lots.

What's Included in the Permit Set

Our construction document packages are prepared to professional standards. These plans are designed with structural coordination built in, meaning less time spent by engineers resolving framing spans.

Sheet Name Description
Cover Sheet & Index Architectural rendering preview, building codes overview, and drawing index list.
Site Plan Guide Site planning layout guidelines (local engineering required for topography).
Foundation Plan Crawlspace or full basement structural layout details with load points marked.
Dimensioned Floor Plans Main and upper floor layouts with detailed dimensions, door schedules, and wall types.
Exterior Elevations Front, rear, and side elevations detailing stucco, stone, and cedar cladding heights.
Building Sections & Wall Details Cross-sections detailing floor joists, steel column spans, and roof eaves.
Roof Plan Roof framing directions, valley slopes, and drainage layouts.
Electrical & Lighting Layout Ceiling lighting plans, switches, outlets, and panel locations.

Pricing Options

Purchase Plans or Customize

Best Value

Purchase Plan

$18,500

Get the complete permit-ready digital drawing package (PDF + CAD source files) for immediate download and building review.

  • Complete construction drawing set (PDF)
  • CAD file format (.DWG) for local modifications
  • Single-build license agreement
  • Unlimited printing for contractors & building inspections
Purchase Plan Set

Modifications Included

2 series of modifications

Modify this plan to suit your local zoning laws, site orientation, basement addition, or specific room configurations.

  • Consultation directly with designer Daniel Allen
  • Foundation changes (basement additions or slab swaps)
  • Interior walls, room dimensions, and exterior finishes updates
  • Updated structural framing plans for your local engineer
Request Custom Modifications
