Buckhead Courtyard Residence

The Challenge

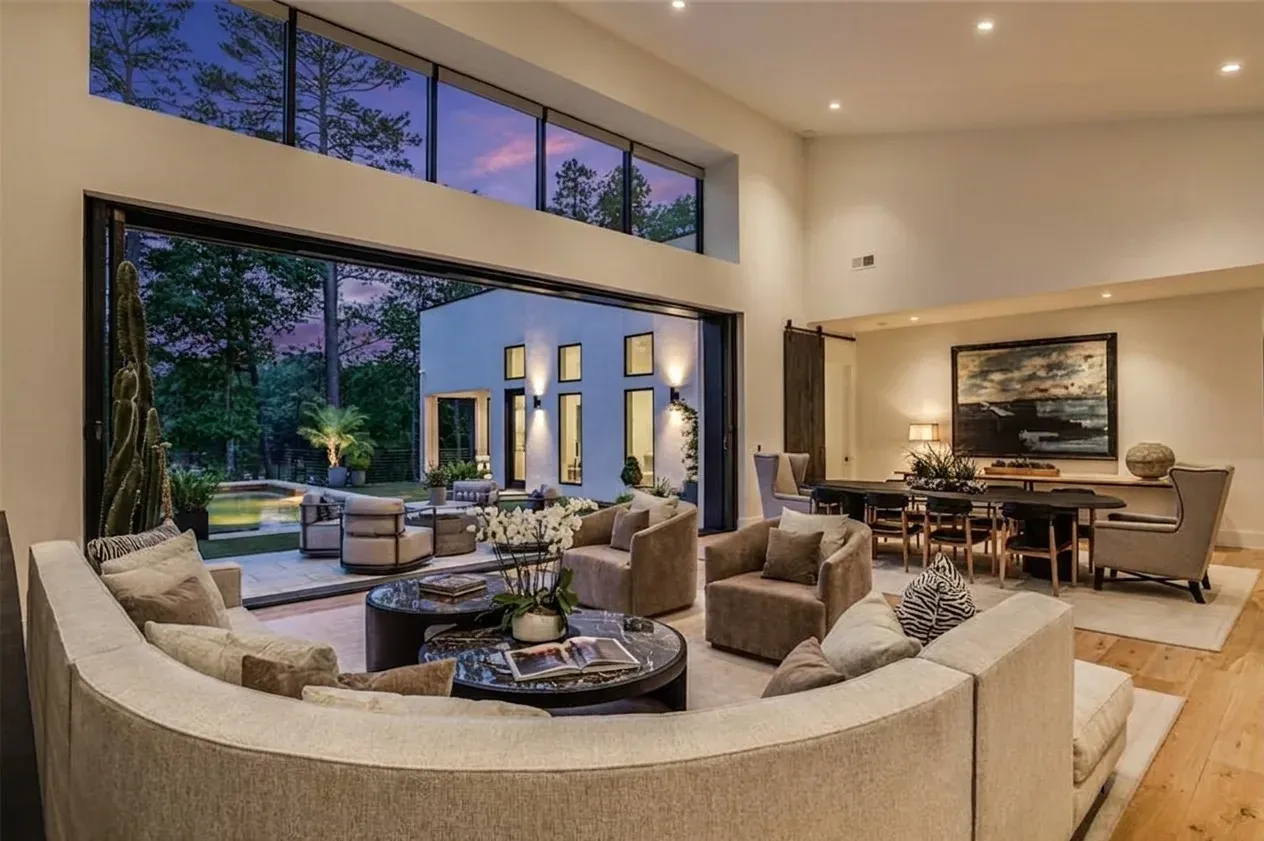

The clients envisioned a home that blurred the line between indoor and outdoor living — a residence where every room opened to the landscape, and the pool became the visual and functional center of daily life. They wanted resort-level amenities without the impersonal scale of a resort. The home needed to feel intimate despite its generous square footage.

Buckhead's established tree canopy and gently sloping topography provided the raw material. The half-acre lot backed up to a protected green buffer, offering privacy and mature hardwoods. The challenge was harnessing those site advantages while managing stormwater, grading, and the complex structural requirements of a courtyard-centered plan with a significant pool and terrace.

The Builder's Eye in Action

A courtyard home of this scale concentrates structural, mechanical, and waterproofing challenges into a tight footprint. Our Builder's Eye methodology addressed each one during design — not during construction.

Builder's Eye Featured Case Study

Courtyard Drainage & Foundation Hydrostatic Pressure Mitigation

Details

The Construction Challenge

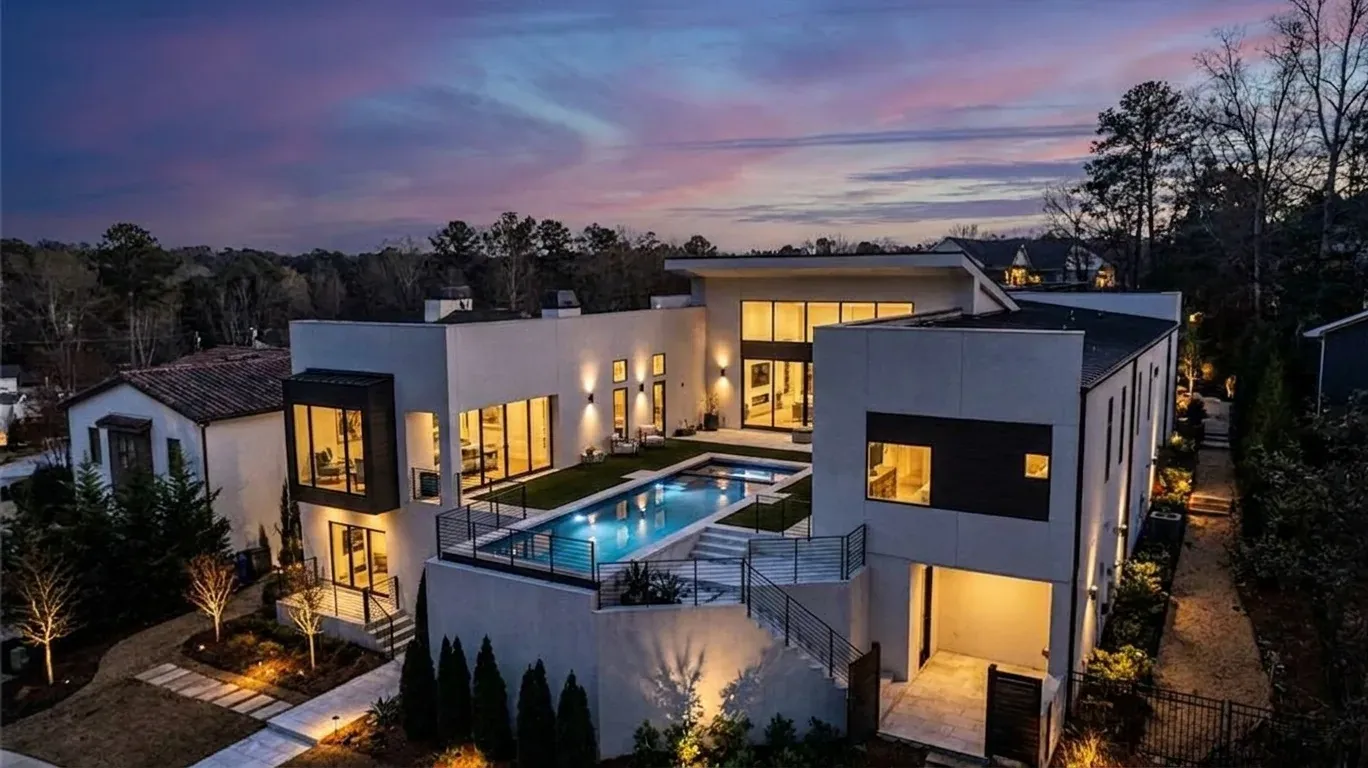

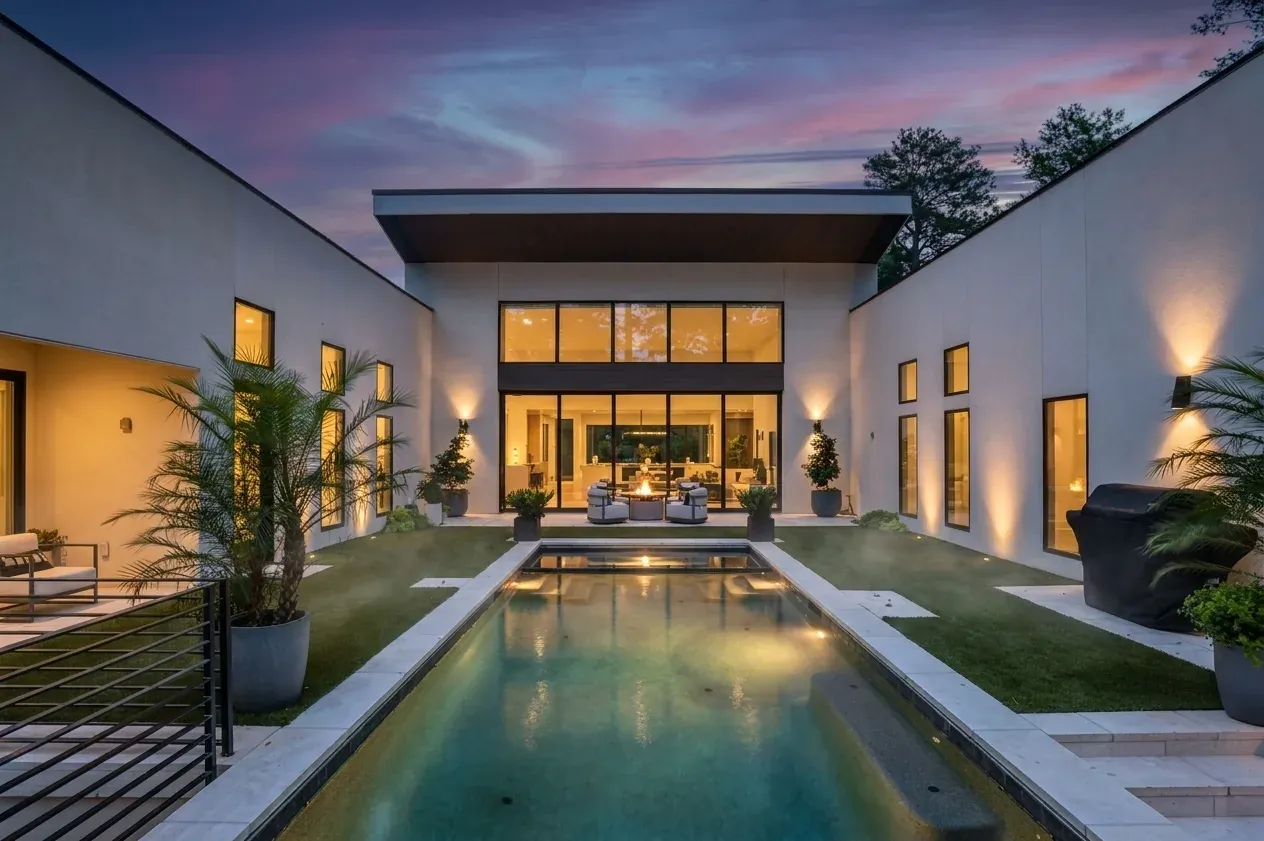

The home's U-shaped design wraps directly around a central pool deck and courtyard. Because of the surrounding roofs shedding water toward the center and the close proximity of the pool shell, heavy rainstorms can trap massive amounts of water in the courtyard. If unmanaged, this water exerts severe hydrostatic pressure against the adjacent main foundation walls, leading to leaks, dampness, and structural damage.

The Builder-Designer Coordination

Drawing on hands-on building experience, Daniel engineered a dual-path drainage system during the design phase. He detailed negative-slope subgrade concrete grading beneath the bluestone courtyard pavers, funneling water to high-capacity deck drains. He then integrated below-grade foundation waterproofing membranes, specified a redundant drainage layer, and coordinated a dedicated sump basin with dual commercial-grade pumps to evacuate water directly to the main storm sewer system.

Real-World Impact: Prevented foundation moisture penetration and saved the client an estimated $12,000+ in post-build grading repairs. The basement has remained completely dry with zero water intrusion over years of operation.

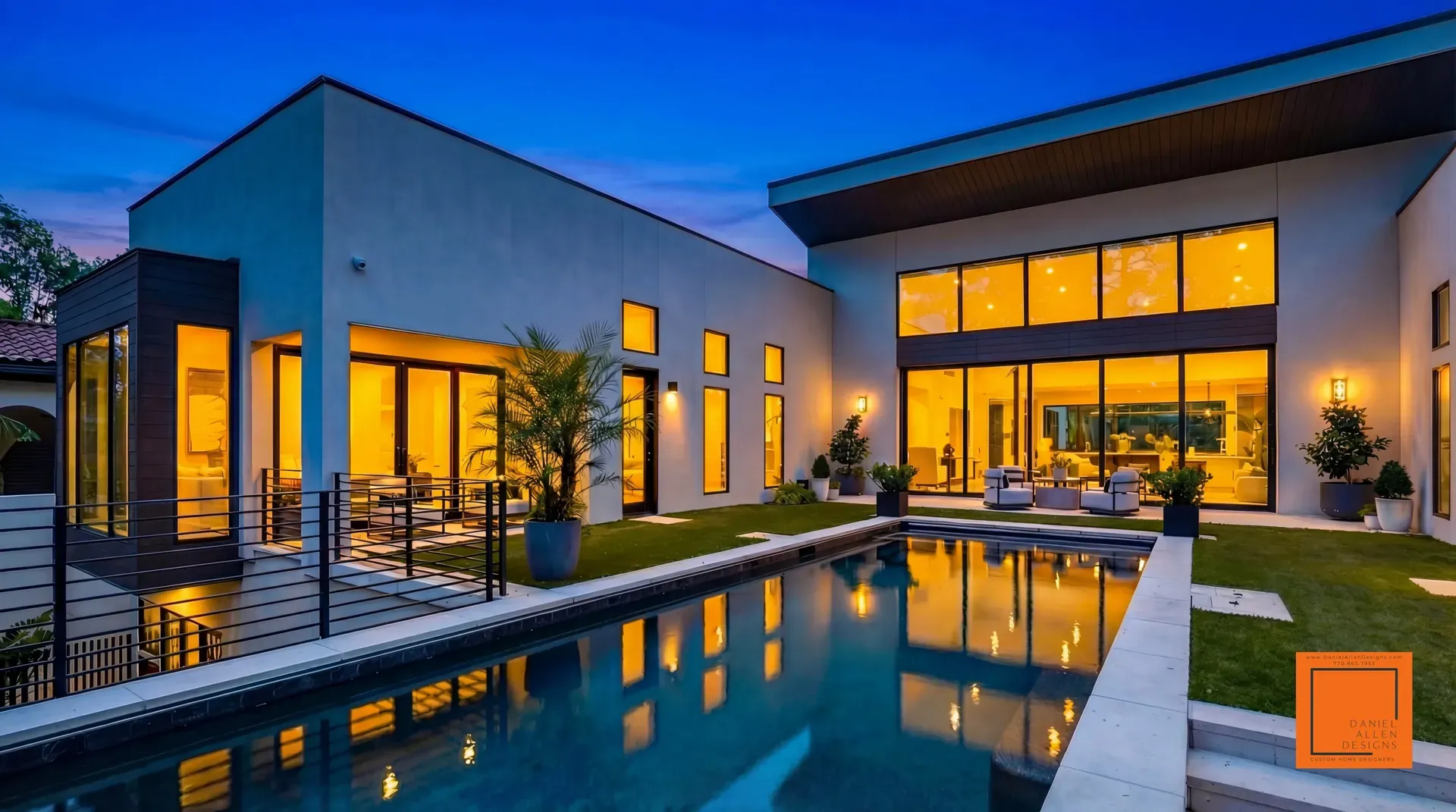

Structural Complexity: The U-shaped plan with floor-to-ceiling glass on the courtyard side required a continuous steel moment frame system. We specified connection details, column sizes, and beam-to-slab interfaces during Design Development, allowing the structural fabricator to begin shop drawings concurrently with permitting.

Pool Integration: Coordinating a structural pool shell with the home's foundation and drainage systems is where many courtyard projects encounter problems. We worked with the pool engineer during schematic design to establish finish floor relationships, equipment pad locations, and plumbing penetration points — preventing the retrofit nightmares that plague projects where pool design happens after the house is framed.

Waterproofing Strategy: With habitable space on three sides of a pool, waterproofing is not an afterthought. We specified a comprehensive below-grade waterproofing system, positive drainage details at every pool deck-to-building junction, and redundant drain paths — fully documented in construction drawings. The builder reported zero water intrusion issues during the warranty period.

HVAC Zoning: Three wings with dramatically different glass exposure required a carefully zoned mechanical system. We planned five independently controlled zones with dedicated supply runs, ensuring comfort in the glass-heavy great room without overcooling the more enclosed primary suite.
